• All TEM magnification ranges
• Camera constant
• Image/diffraction pattern rotation

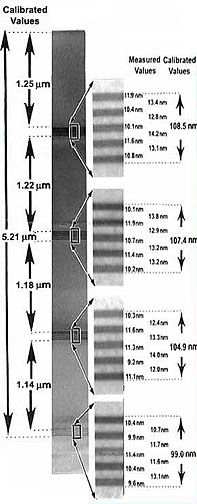

MAG*I*CAL consists of an electron transparent cross-sectional TEM sample made from a MBE grown, single-crystal semiconductor wafer. When the calibration structure is viewed in a TEM, it appears as a series of light and dark layers where the layer thicknesses are accurately known.
The calibration thickness measurements of the light (silicon) and dark (SiGe alloy) layers are based on careful TEM measurements of the <1 1 1> lattice spacing of silicon, which is visible on the calibration sample itself and are supported by X-ray diffraction measurements.
The layer spacings are designed so the sample can be used to calibrate the entire magnification range in TEM from 1,000X to 1,000,000X. As the sample is also a single crystal of silicon, the calibrations requiring electron diffraction information, such as the camera constant and image/diffraction pattern rotation, can also be performed easily and unambiguously.
The MAG*I*CAL calibration sample is directly traceable to the lattice constant of silicon <1 1 1> (0.3135428nm). This constant can be measured directly on the MAGICAL sample, providing unbroken traceability to a fundamental constant of nature. One single calibration sample can be used to provide all three of the major TEM instrument calibrations at all magnifications and all cameras lengths.
