Multi Holders for Smaller 9.6mm Diameter Pin Stubs

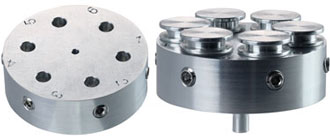

The 25mm diameter holder (#16142-25P) can accommodate up to four Small Diameter Pin Stubs, and the larger 32mm diameter (#16142-32P) holder can accommodate up to six. Ideal for desktop SEMs, where holder size can be limited, to enable loading more samples at once. Shown with and without Small Pin Stubs (#16142 Special Small Head Ø9.6mm, pin 8mm length x 3.2mm diameter), which are sold separately.

Material: machined aluminum with stainless steel allen set screws. Allen wrench included.

#16142-25P Dimensions are Ø25 x 10mm (0.98 x 0.39") without pin.
#16142-32P Dimensions are Ø32 x 10mm (1.26 x 0.39") without pin.

Standard Ø3.1mm (1/8") pin with a length of 9.5mm (3/8").
